4 نفره موتور برقی گلف کارت با نمایشگر 10 اینچی برای استراحتگاه های گلف

4 نفره موتور برقی گلف کارت با نمایشگر 10 اینچی برای استراحتگاه های گلف

نام تجاری: LANGJIE
شماره مدل: FHA2+2
مقدار تولیدی: 1 واحد
Price: Negotiate
شرایط پرداخت: t/t
توانایی عرضه: 300 واحد در ماه
جزئیات اطلاعات
محل منبع:
گوانگدونگ
گواهی:
CE, DOT
نام قطعه:
ماشین شکاری برقی
درجه بندی:
25%
ولتاژ:
48 ولت
ظرفیت مسافر:
4 صندلی
محدوده:
80 کیلومتر تا 100 کیلومتر
ابعاد:
3005*1350*2080mm
کاهش وزن:
575 کیلوگرم
نوع باتری:
باتری بدون تعمیر و نگهداری 48 ولت
جزئیات بسته بندی:
غیر بسته بندی یا بسته بندی فولادی
قابلیت ارائه:
300 واحد در ماه
برجسته کردن:

14-inch Wheels Electric Golf Cart

توضیحات محصول
4 Seaters AC Motor Electric Golf Cart With 10-Inch Display For Golf Resorts
2025 New Wholesale China Custom Logo Golf Carts 2+2 Seats Car Certified
Electric Golf Car (Hunting Car) 2+2 Seats FHA2+2
HS CODE8703101900
Qty/20'GP (Assembled)1 UNITS
Qty/40'HQ (Assembled)3 UNITS
Qty/20'GP (Disassembled)7 UNITS
Qty/40'HQ (Disassembled)18 UNITS
Passenger capacity2+2 seats
Performance Specifications
Max.Speed40km/h
Range(loaded)80km(level road)
Climbing Ability25%
Braking Distance<3.5m
Min.Turning Radius3m
Min.Clearance170mm
Recharge time8~10h
Dimensions
L×W×H3005*1350*2080mm
F/R Tread965mm//968mm
Axle Distance1670mm
Curb Weight<=575kg
Max. loading340kg
Standard Configurations
Motor48V/5KW AC motor
Controller48V
BatteryMaintenance-free battery 48V
Body & RoofThe front cover, seat bucket, body and rear bumper cover parts are injection molded with engineering PP special materials for aging resistance and ultraviolet protection + Grsted black square pipe frame + PP material injection molding roof
WindshieldFoldable windshield
SeatsPU leather + special sponge modeling sofa
Rear view mirrorLeft and right mirrors
BumperFront Bumper
Tire14-inch aluminum alloy wheels + 14-inch off-road tires
ChassisQ235 high-strength sheet metal profile welding, electrophoresis + anti-rust spraying
Front SuspensionMcPherson independent front suspension + spiral spring + damped hydraulic shock absorber
Rear suspensionIntegral rear axle, speed ratio 16:1 spiral spring shock absorber + damping hydraulic shock absorber + rear stabilizer bar
Lighting systemLED front combination (near light, high beam, turn signal, daily light) LED rear taillights (brake lights, running lights, turn signal lights); snail horn, reversing buzzer
Sound systemSpeaker
Brake system220 large size hydraulic drum brake rear axle: four wheel hydraulic brake, front disc rear drum + foot parking
Steering systemDouble gear rack steering system, automatic clearance compensation function
ChargerOutput:48V, Input AC 220V/50HZ~60HZ
DashboardInjection molding instrument panel, ignition switch, direction selection switch, high beam switch, horn headlight combination switch, water cup holder; USB + Type-c charging / double USB charging
Display10-inch large screen waterproof advanced multimedia combination LCD screen, with vehicle status information
Seat belttwo-point seat belt
RoofBlack
Optional colorWhite, Metallic silver, Metallic black, Blue, Bright cherry-red, Green, Red
Product Images

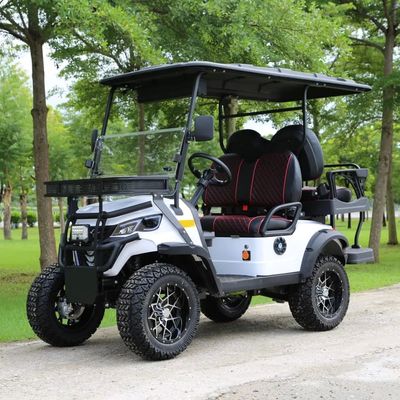

2025 Custom Logo Golf Cart front view
2025 Custom Logo Golf Cart side view
2025 Custom Logo Golf Cart interior view
2025 Custom Logo Golf Cart dashboard

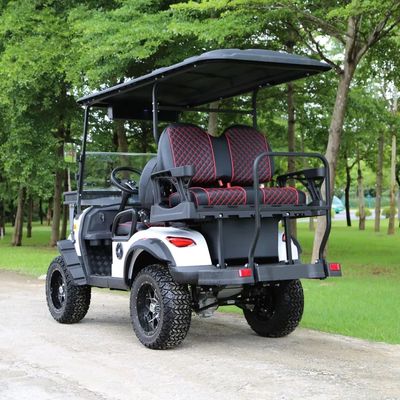

2025 Custom Logo Golf Cart rear view
2025 Custom Logo Golf Cart wheel detail
2025 Custom Logo Golf Cart side profile
2025 Custom Logo Golf Cart front angle view
2025 Custom Logo Golf Cart top view
Packaging & Shipping
Golf Cart packaging method 1
Golf Cart shipping container
Applications
  • Golf Course
  • Hotel
  • Campus
  • Park
  • Airport
  • Tourist Resorts
  • Museum
  • Mountain Area
  • Wedding Place
Key Features
  • Noble and luxury appearance, the design concept of golf cart and traditional technology
  • Electric power steering system, Suspension system with good comfort
  • High efficiency AC (Alternating Current) motor
Frequently Asked Questions
1. What's your warranty time?
All golf cart sold by us are quality guaranteed. We provide 1 year warranty for main parts to our electric vehicles when you get them.
2. What's the production time?
Normally for 30 working days.
3. What's your payment term?
T/T 30% deposit and balance paid before shipment.
4. Can we also purchase the parts?
Yes, if you do maintenance service, you can also buy parts from us. We are the professional for the aftersales.
5. How do you provide after-sales once customer bought the cart from us?
Once you purchase the cart from us, then we will provide you manual to learn it and tell you how to fix it.
6. What is your MOQ?
You can order MOQ 1 unit.
7. Can we put the Logo we designed on the cart?
Yes, you can put your own Logo on the cart.
8. How do you make our business long-term and good relationship?
1. We keep good quality and competitive price to ensure our customers benefit;
2. We respect every customer as our friend and we sincerely do business and make friends with them, no matter where they come from.
9. Dealer:
If you can do 100-200pcs in a year, then the next year, we will sign exclusive dealer with you and promise never sold to your dealer area.
